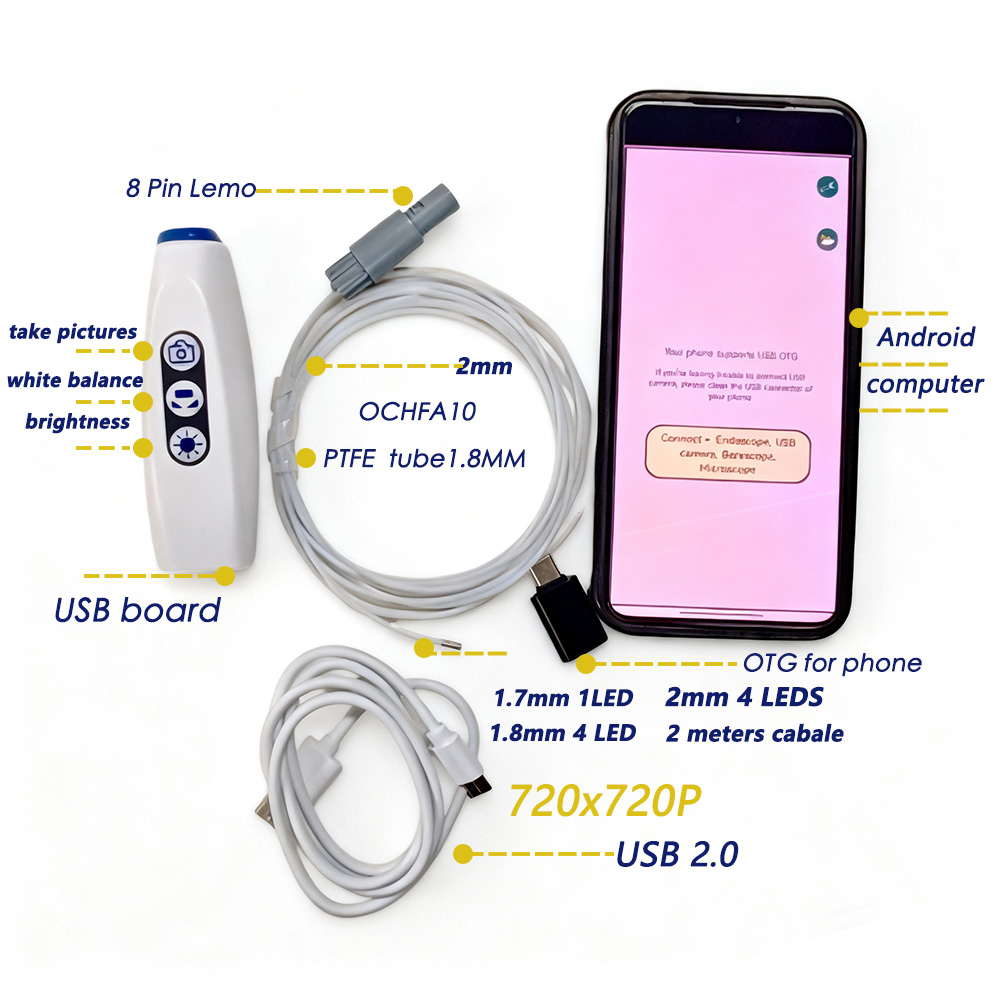

1.5mm OCHFA10- Used for endoscope assembly, image display 720X720p

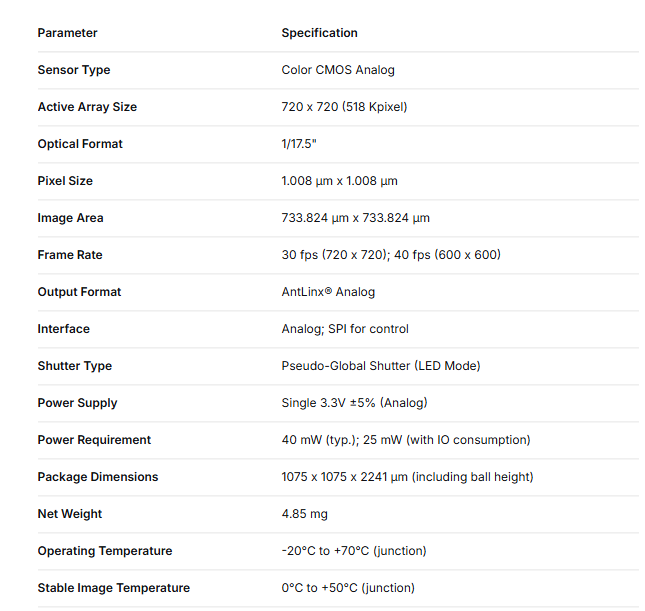

ParameterSpecification
Sensor TypeColor CMOS Analog
Active Array Size720 x 720 (518 Kpixel)
Optical Format1/17.5"
Pixel Size1.008 µm x 1.008 µm
Image Area733.824 µm x 733.824 µm
Frame Rate30 fps (720 x 720); 40 fps (600 x 600)
Output FormatAntLinx® Analog
InterfaceAnalog; SPI for control
Shutter TypePseudo-Global Shutter (LED Mode)
Power SupplySingle 3.3V ±5% (Analog)
Power Requirement40 mW (typ.); 25 mW (with IO consumption)
Package Dimensions1075 x 1075 x 2241 µm (including ball height)
Net Weight4.85 mg
Operating Temperature-20°C to +70°C (junction)
