1.5mm OVM6946 for endoscopic assembly image display 400x400p
Share to：

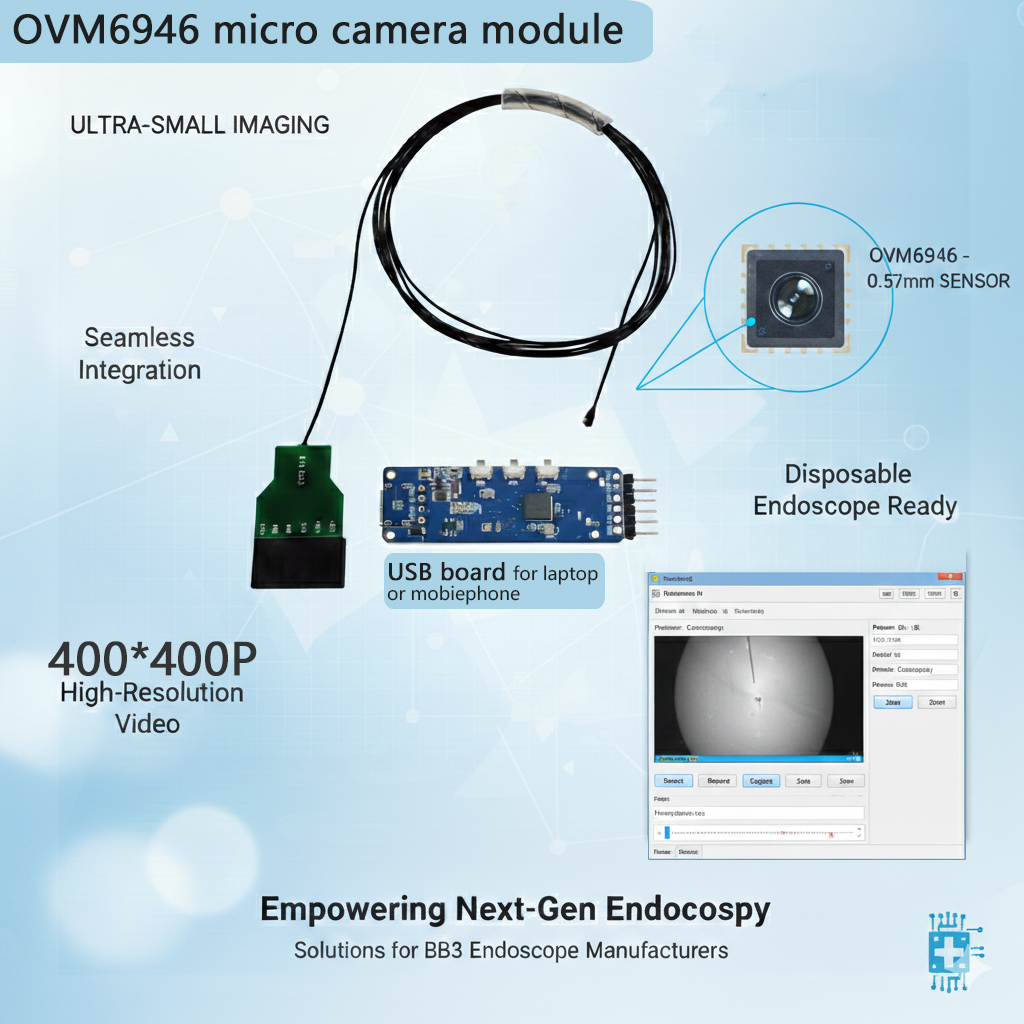

1.5mm OVM6946 for endoscopic assembly image display 400x400p

1/ 18 "   400 × 400 resolution
30 fps
1.10 × 1.10 mm CameraCubeChip
90° / 120° FOV
25 mW low power
Analog / AntLinx™ output

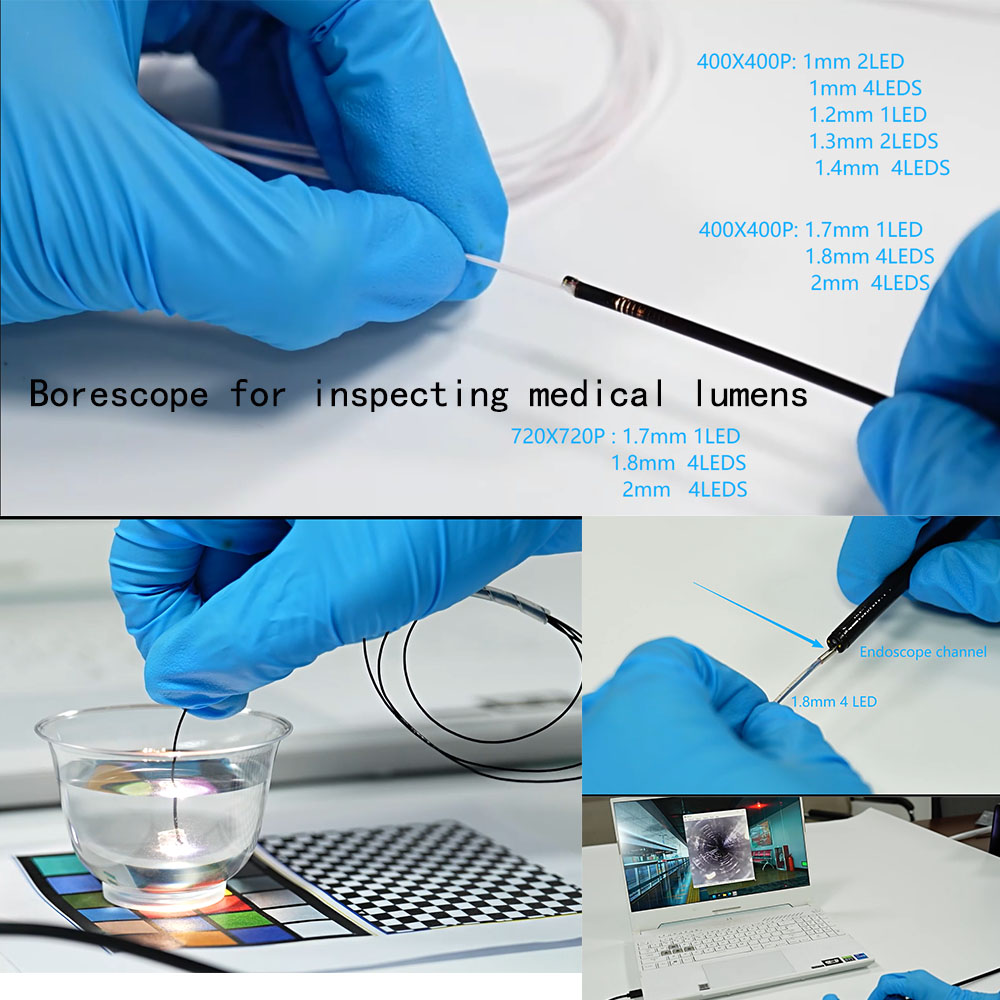

Ultra-compact for disposable endoscopes
18923728885 Online Inquiry
Product Details

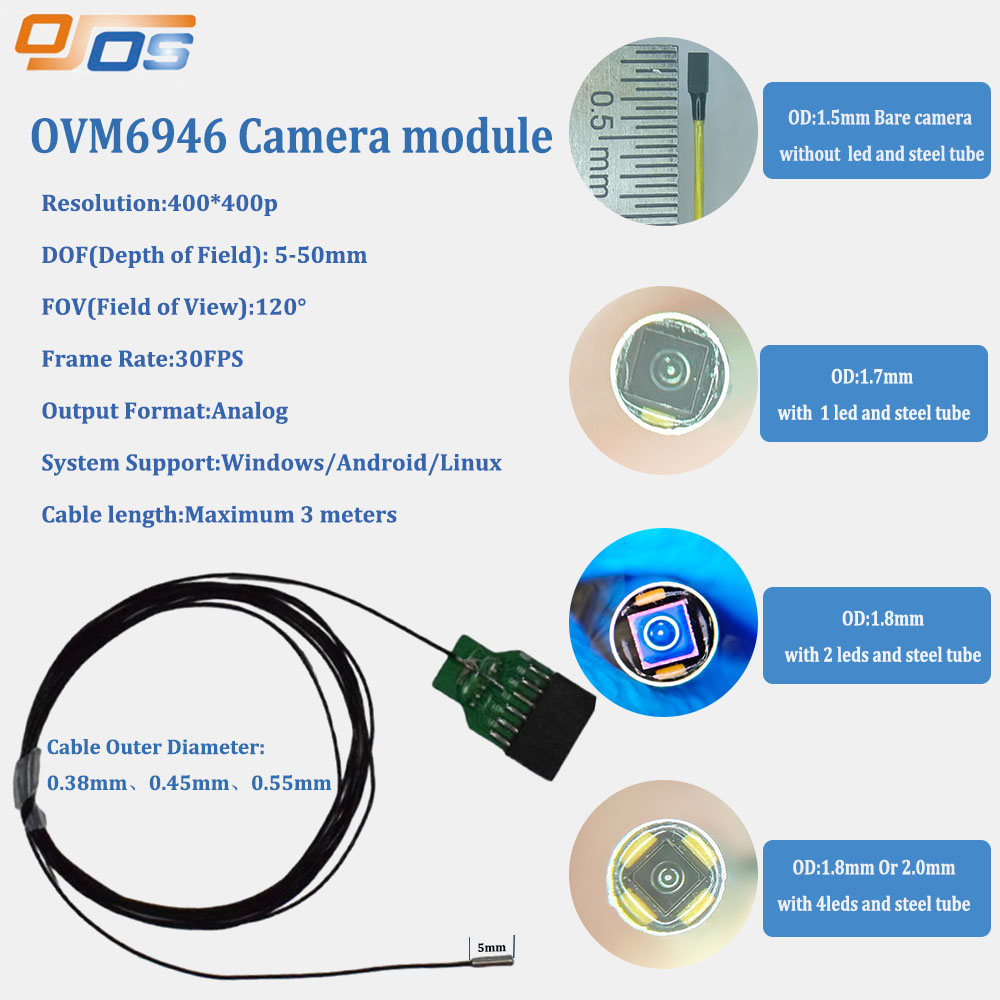

Optical Spec

Coms size2P 1/18"
Pixel size1.75*1.75um
Fno5.0
Diagonal Fov90 degree/ 120
TV-distortion<6%
Relative illumiance60%
Chief ray angle<25%
Maximum image circle1.0 mm
Depth of filed5-50 mm

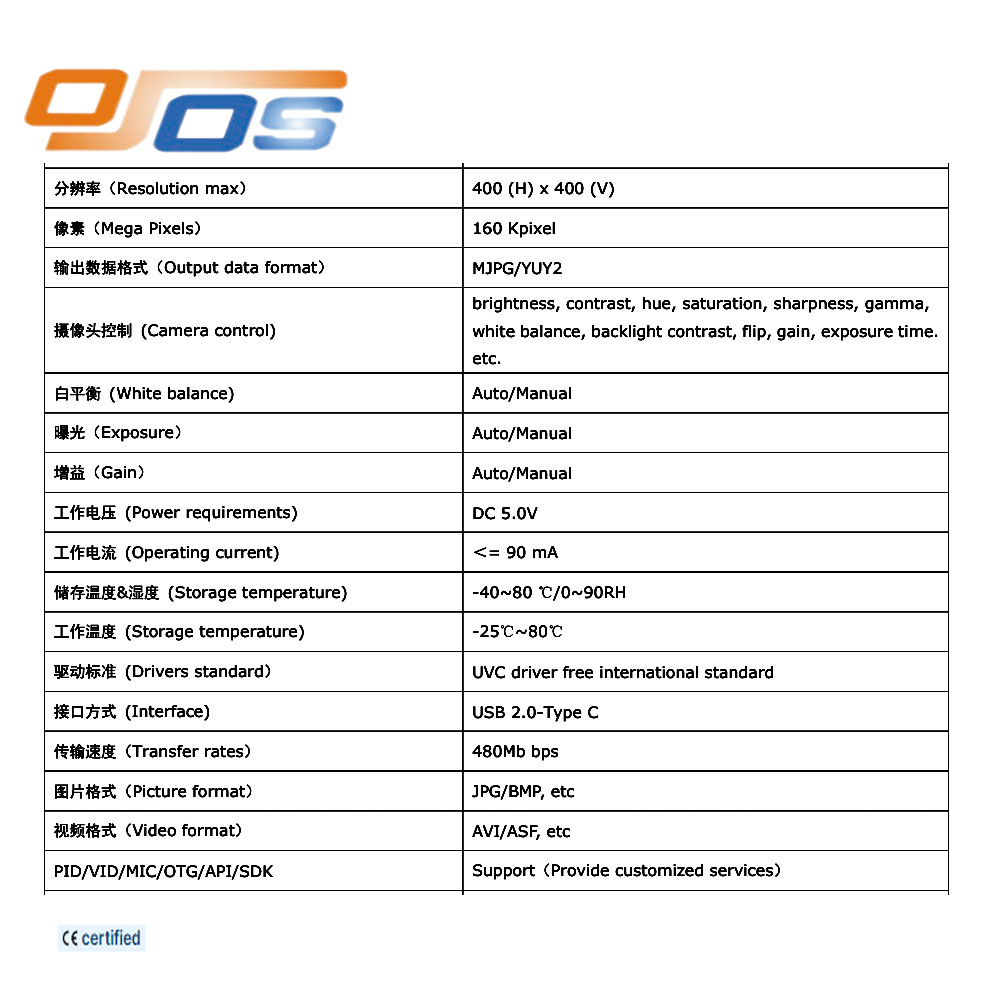

Electric spec

Sensor 1/18" 400*400
Max frame rateVGA 360fps
InterfaceUSB 2.0
USB output solutionMJPG 400*400
White balance auto modeAuto mode
Operating temperature-10 ~+50 degree
Steel tube temperature</= 41 degree
Min diameter1.05*1.05 MM
Maximum length5 M



46.jpg400p.jpgfa349b8c365fa27661f78a722a7acd9b.jpg8a8db39416a1df105d889beae113ef09.jpg75838630ac3fee0f6e7669c9ed547970.jpg
